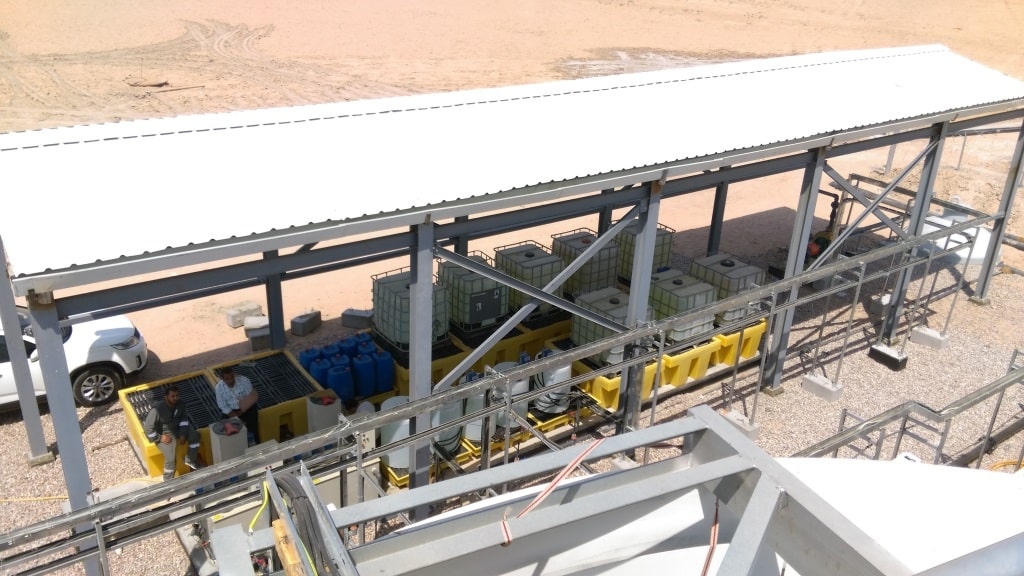

Common Seawater Supply – For Oil and Gas application

REQUIREMENTS OF THE CUSTOMER :

• Full control system and SCADA station for the water treatment plant

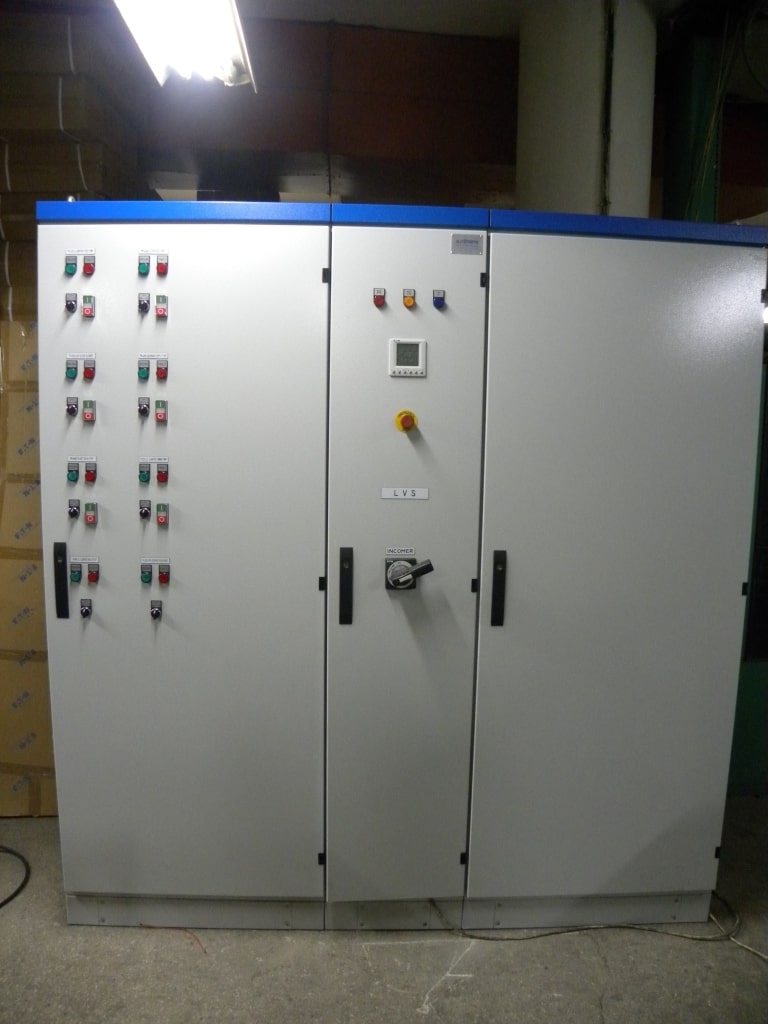

• Power and automation system for all the facility

CHALLENGES / VISIONS / NEEDS

• Supply and setup of instruments, calibration, scaling and commissioning on site.

• Calibration, commissioning of sophisticated ow control valves (FCV) and motorized ball valves (MBV), calibration of analog input set point and analog output feedback to PLC.

• Control of working hours of Main generators in Duty / Standby mode

• Analysis of PH, conductivity and Turbidity readings at each process stage to define  the efficiency of the system.

• Supply and commissioning of PFC power factor correction cabinet with 3 steps.

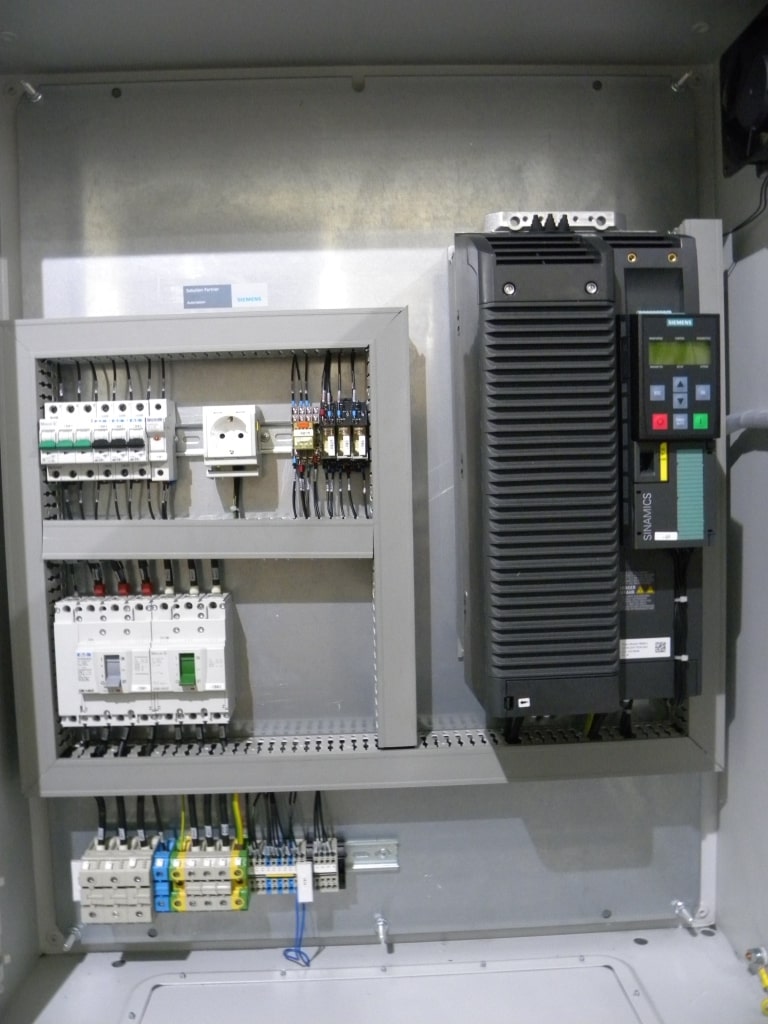

• Supply and commissioning of VFD found at sea cabinet for Raw Water Pump RWP to control the main water ow supplied to the system , including pump motor overheat protection .

• Providing support to mechanical team in eliminating leakage in some critical locations.

• Adjustment of all oat switches to control the min/max level in each tank.

IMPLEMENTATION BY THE SOLUTION PARTNER :

• Deliver a full control , power and automation system for all the facility

• implementing control functions and suggesting operation philosophy

• Continuous Support and availability , guaranteed know-how to be provided by the SP

• Product Quality, full integration, easy to configure.

BENEFITS FOR THE CUSTOMER :

• Siemens automation system used was based on Simatic S7-1500 and TIA (Totally Integrated Automation)

• Individual controllers were used, where all the system was controlled using one main PLC.

• Easy operation/maintenance

• System is fully automated and doesn’t require any personal intervention

• Maintenance cost is reduced by using highest product quality , fault detection and event logging that allows to trace problems causes.
